WindyNation

ANL Fuse Holder with ANL Fuse

ANL Fuse Holder with ANL Fuse

6 total reviews

Regular price $15.99
Regular price Sale price $15.99
Sale Sold out
Shipping calculated at checkout.

Our Shipping Policy

SKU:ANL-HF-30

Free Standard Shipping

The WindyNation ANL Fuse Holder with fuses are used in electrical systems in which the fuse is designed to burn out when the current exceeds the safe limit for the device being protected by the fuse. It is the end user's responsibility to determine the appropriate fuse size for the electrical circuit. In general, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse

  • Includes 1pc WindyNation ANL Fuse Holder + 2pcs ANL Fuses
  • ANL fuse holder will accept up to a maximum of 2/0 gauge cable
  • Maximum Voltage: 72 VDC

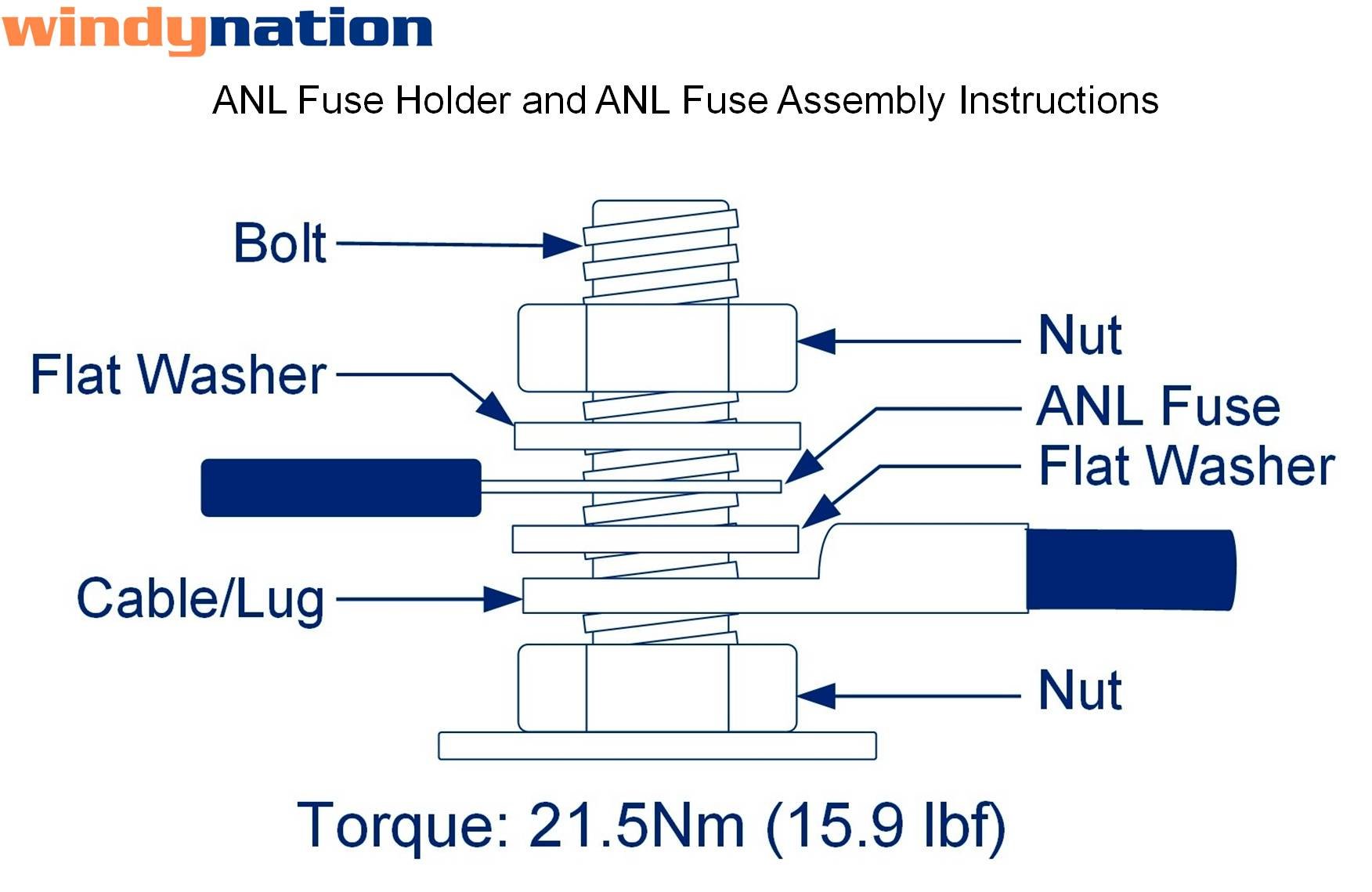

  • ANL Fuse Holder mounting bolts are 8 mm in diameter. Use cable terminals with a 5/16" diameter or 8 mm diameter mounting hole to achieve a proper connection to the ANL Fuse Holder mounting bolts
  • For most applications, the fuse should be sized at approximately 1.30 times the rated power of the device being protected by the fuse



4.8
Rated 4.8 out of 5 stars
Based on 6 reviews
Total 5 star reviews: 5 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Customer-uploaded media carousel. Press left and right arrows to navigate. Press space or enter to open more details.
Slide 1 selected
6 reviews
  • BM
    Brian M.
    Verified Buyer
    I recommend this product
    Rated 4 out of 5 stars
    2 weeks ago
    Buy it

    Works as it should and comes with 2 300 amp fuses. The cover can be a bit of trouble to snap on and the cables must be straight or else it pops off. Happy with it overall.

  • JM
    jerry m.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    4 days ago
    Great product.

    Excellent fuse and holder.

  • DH
    Darrell H.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 months ago
    Awesome

    Works great

  • JB
    Jerry B.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 months ago
    Fuse Holder

    Perfect fit . Staff is very helpful, going above and beyond.

    Vary large selection of electrical components that we use on a regular basis.

    Wish I knew about this place sooner .

    Keep up the good work!

  • MK
    Michael K.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5 stars
    2 months ago
    Fuse

    Good product

Reviews LoadedReviews Added
View full details
