35-Amp 3-Phase Bridge Rectifier
35-Amp 3-Phase Bridge Rectifier
SKU:BR-35-1
Couldn't load pickup availability

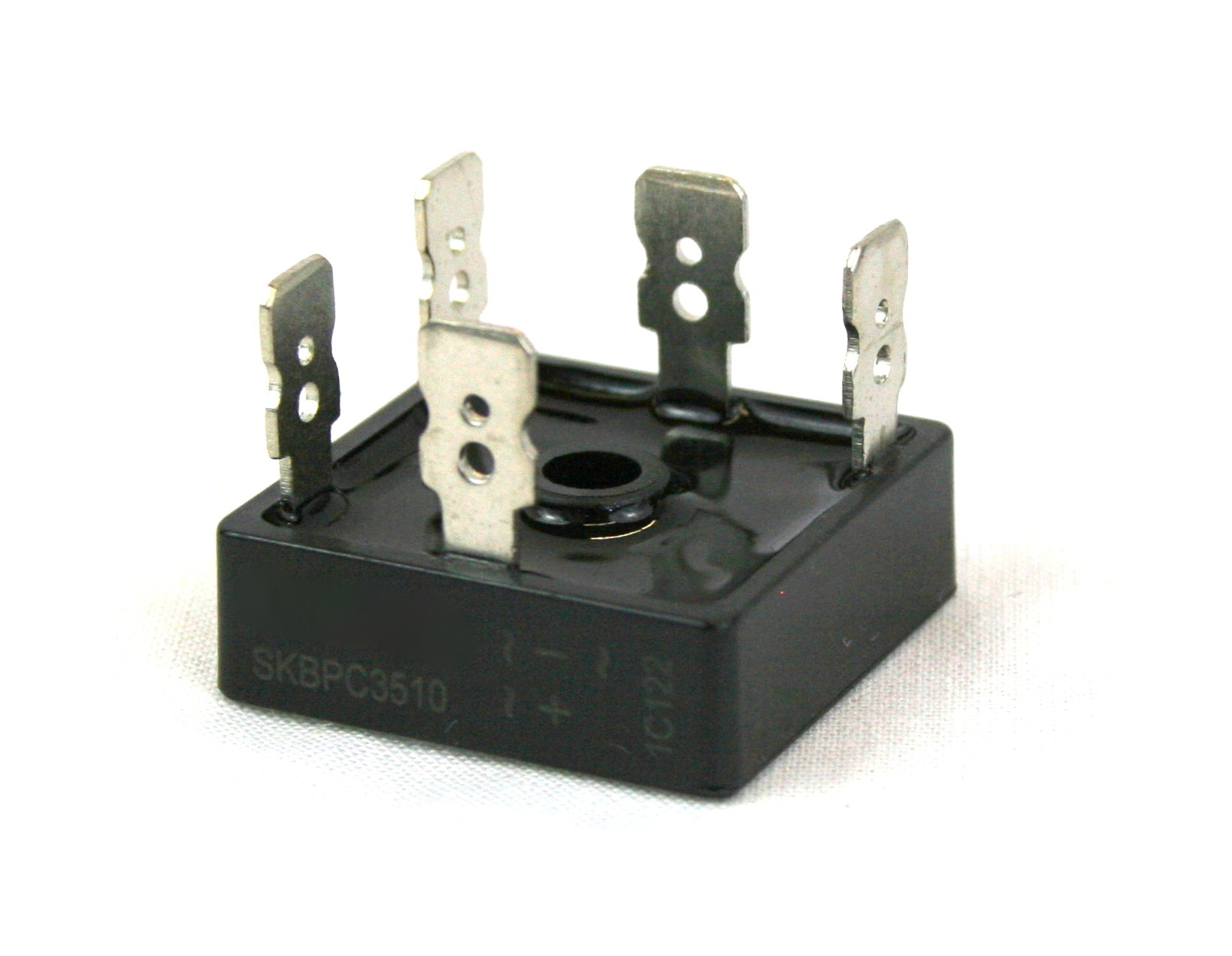

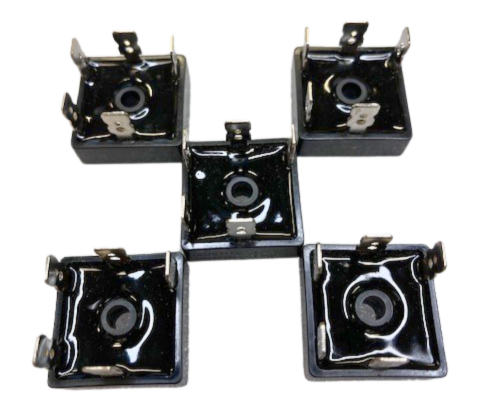

This is a 35-Amp 3-Phase bridge rectifier that converts three-phase AC voltage to DC voltage. This unit is perfect for smaller generators that put out 35 Amps or less. This includes 3-Phase AC motors which are often used to make wind generators!
- Will work on all battery banks
- The operating range is 0 to 1,000-Volts
- Will work on AC generators that produce 35-Amps or less
- Spade terminals for easily attaching the input and output wires
- One center mounting hole for easily securing to your heatsink and electrical box

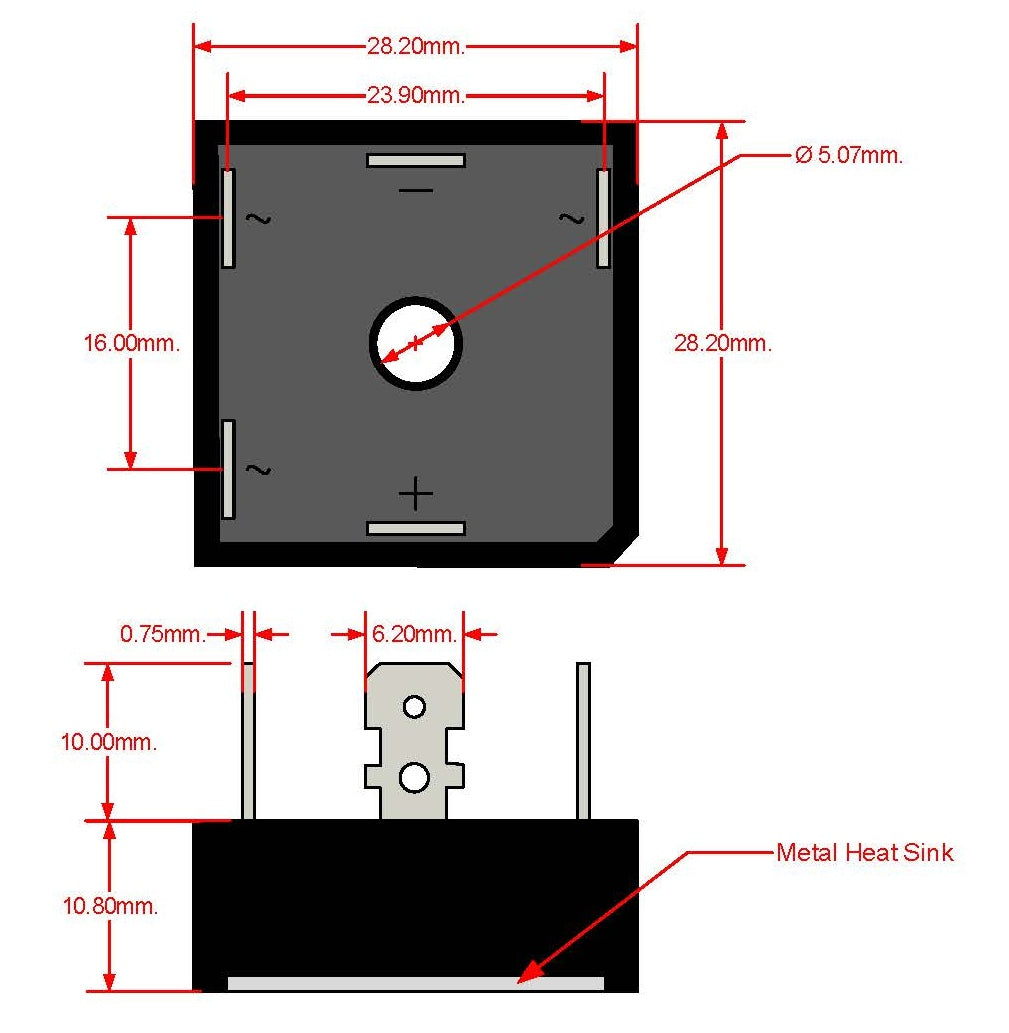

SPECIFICATIONS:
- Repetitive Peak Reverse Voltage (VRRM): 1000 Volts
- Average Rectified Output Current (IO): 35 Amps
- Surge Forward Current (IFSM): 400 Amps
- Peak Forward Voltage (VFM): 1.2 Volts
- Peak Reverse Current (IRRM): 10 uAmps
- Storage Temperature: -40 to +150C
- Junction Temperature (Tj): -40 to +150C
- LMLee M.Verified BuyerRated 5 out of 5 stars9 months agoPerfect Rectifier for Portable Wind Turbine
This rectifier is a perfect fit for the Windturer (https://www.instructables.com/WINTURER-a-Portable-NP-F-Battery-Charger-Wind-Turb/) portable wind generator to charge battery packs with USB outputs. The compact size (28.6 mm square by 21.6 mm high - to top of lug) fits well inside the body of the wind turbine and the 35 A capacity is more than adequate. An added advantage is that the lugs fit standard 1/4 inch crimp terminals.
