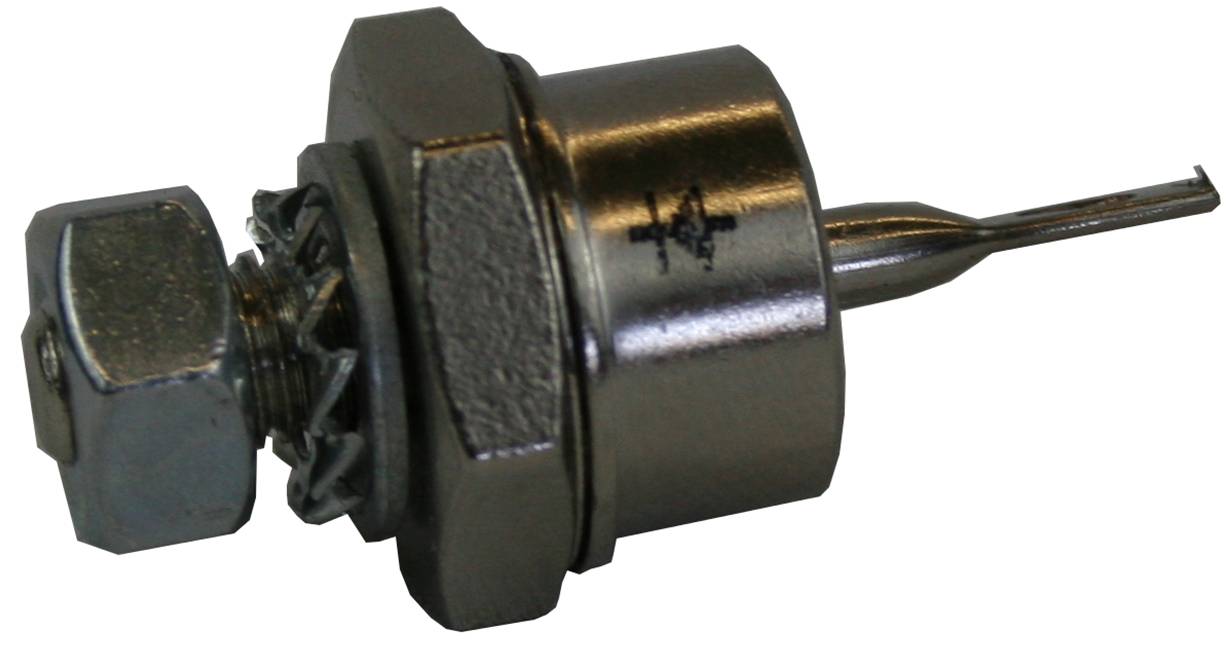

40-Amp or 75-Amp 600 Volt Stud Blocking Diode

Designed to allow current to flow in one direction and block it in the reverse direction makes stud diodes ideal for use in high-current applications, including wind or solar power applications.

The "stud" or threaded base allows the diode to be mounted to a metal surface or heat sink to dissipate heat, a necessity for high-power applications.

• Material: Nickel-plate (bright)
• Peak Forward Voltage: <1.3V (@200 Amp)
• Peak repetitive reverse voltage: >600V (max)
• Peak repetitive reverse current: <2uA (max)
• Case temperature: -40C~175C
• Storage temperature: -40C~150C
