Waterproof 10A 12V Solar Charge Controller w/ LED Charging and Load Indicators
Waterproof 10A 12V Solar Charge Controller w/ LED Charging and Load Indicators
SKU:CHC-OD12-10
Couldn't load pickup availability

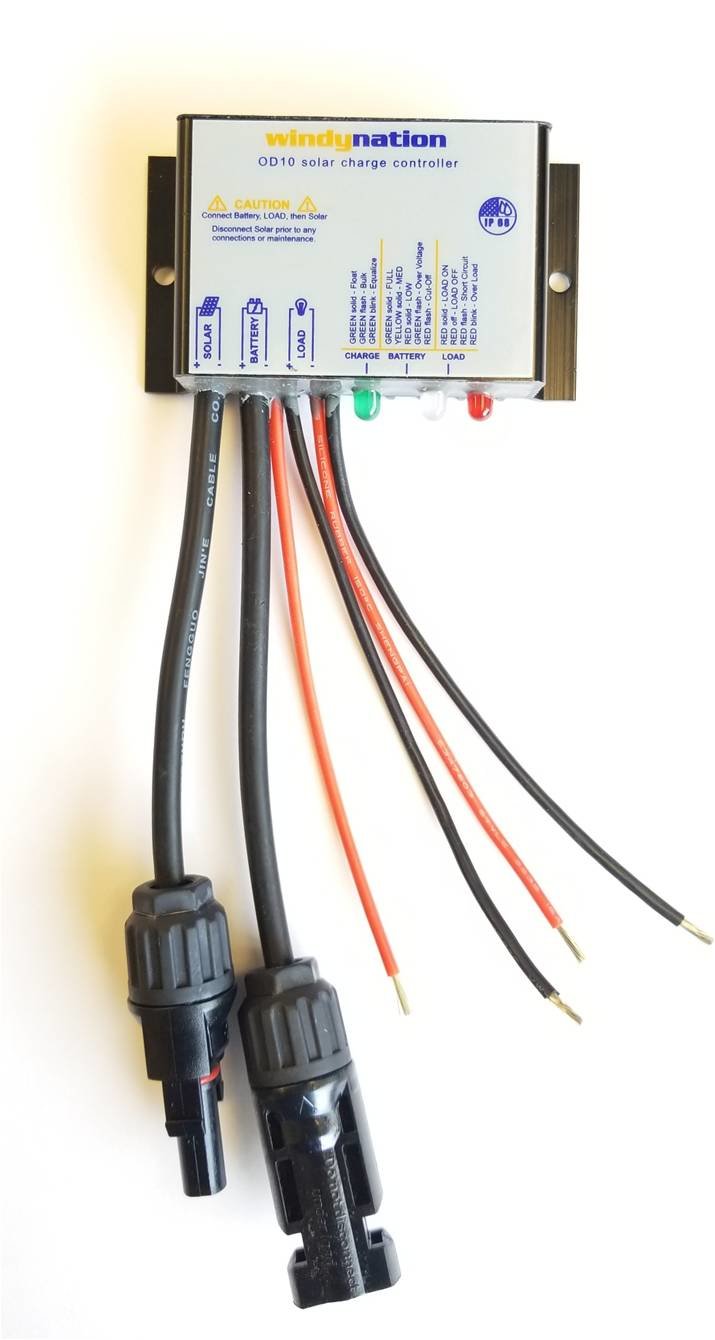

WindyNation's waterproof 10-amp, 12-volt solar charge controller is perfect for outdoor usage and features three LEDs to indicate battery charging status, solar charging status, and load status.
The LEDs are also used to indicate error codes (e.g. load is short-circuited). Suitable for 12V and 24V off-grid applications. Ideal for charging lead acid batteries, including sealed AGM and a wet cell. The charge controller is equipped with a four-stage charging process that is optimized to extend battery life.
- Compact size: Easy to mount directly on the rear of the solar panel using pre-attached PV Connectors.
- IP68 Rated (waterproof) Suitable for Outdoor Use. Intelligent 4-stage PWM charging.

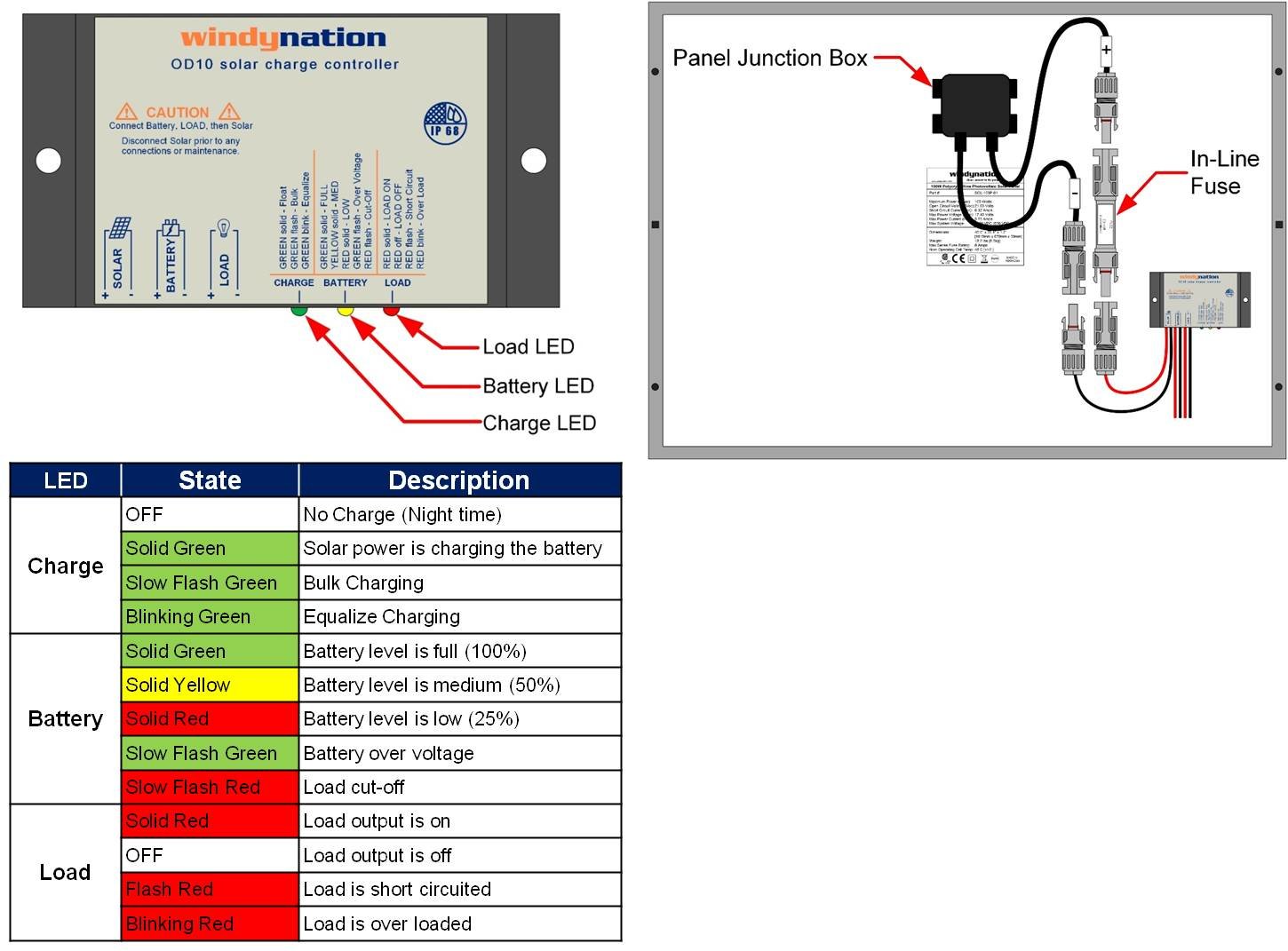

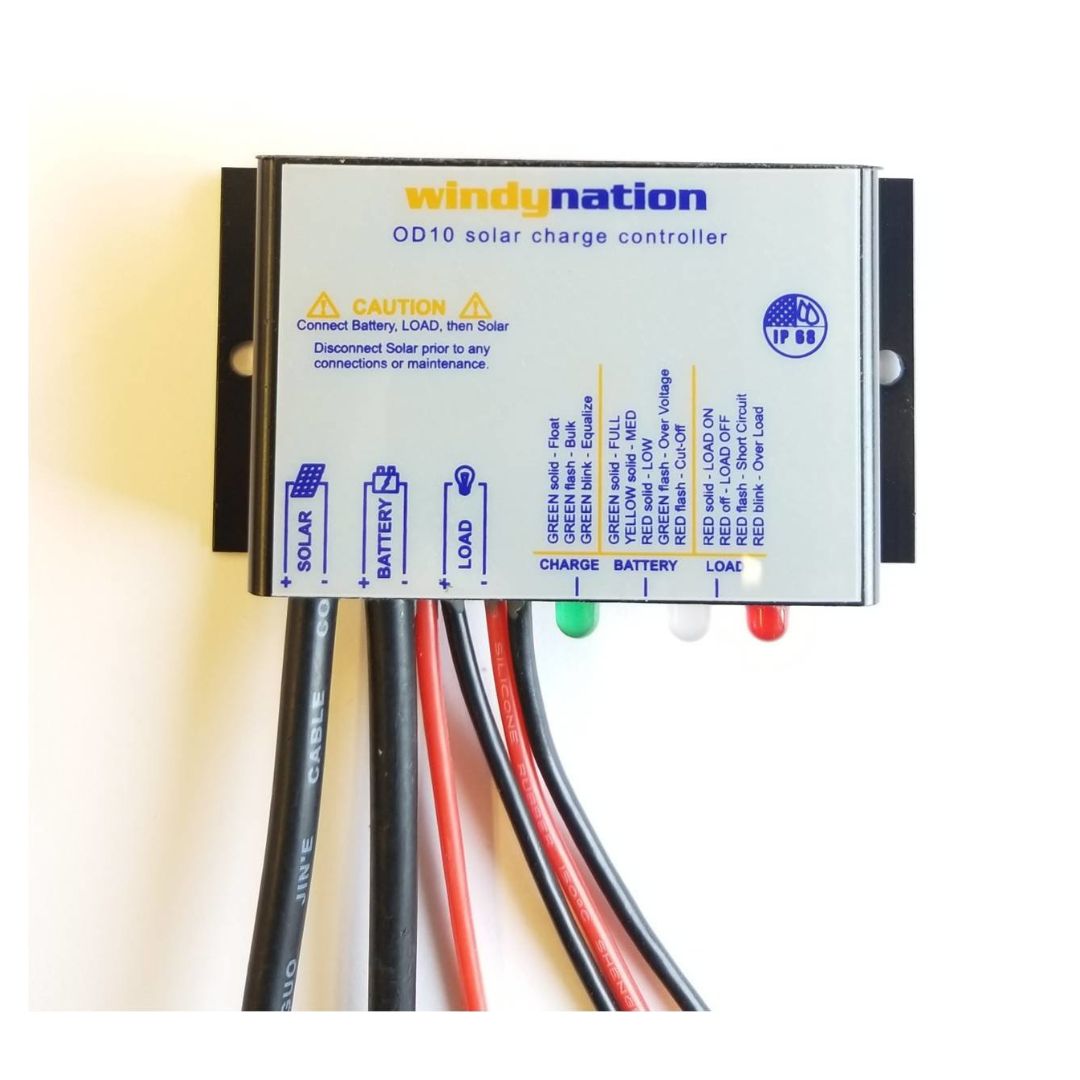

- Three LED lights provide solar charging status, battery level, and load status.
- Pre-wired for easy installation, including cables for attaching solar panel, battery, and load (optional)
- Maintains batteries and extends battery life.
- Automatically senses 12 or 24-volt batteries
- DEDennis E.Verified BuyerRated 5 out of 5 stars10 months ago10amp charger
We use these in our solar-powered security gates and they are bulletproof and weathertight!
They are in the harshest extremes and keep the batteries topped off. batteryoperatedbarrier.com
- JSJohn S.Verified BuyerRated 4 out of 5 stars1 year agoNice, compact unit
I haven't installed it yet so just my first impressions. The wires are 16 gauge which seems a little light. It has battery lugs and the solar connectors already installed. It recommends installing close to the solar panel. But with light wires, you'd want the higher voltage/less amp on the long run so makes more sense to mount near the battery.
Also, it comes with some double stick foam mounting tape. The bottom side is heat sink fins so not a good surface for the tape. The top is the label that you want to be able to read, so not a good mounting option. Not sure what good the tape is. I'll be using the mounting ears to attach to my tractor firewall and probably attach some super magnets to my panel to stick it to my tractor roof.
Hefty unit, so looking forward to it lasting a good long time.
- DPDale P.Verified BuyerRated 5 out of 5 stars1 year agoGood stuff as always
All of your products are always good and your customer service is always excellent. Will be back for more.
Thanks a lot 👍
- EHErik H.Verified BuyerRated 5 out of 5 stars1 year agoIt works
It works !!
